AHU VALIDATION / HVAC
Introduction to AHU VALIDATION/HVAC
Walk into a pharmaceutical cleanroom or a hospital OT and you will notice something you cannot see — controlled air. That invisible shield exists because of proper AHU VALIDATION / HVAC.
What is AHU VALIDATION / HVAC?
At its core, AHU VALIDATION / HVAC is the documented process of verifying that an Air Handling Unit and the entire HVAC system operate within predefined limits.
This includes confirming:
- Airflow volume and velocity
- HEPA filter integrity
- Temperature and humidity control
- Pressure differentials
- Air change rates per hour
- System recovery time
In regulated industries, especially pharma and healthcare, validation of HVAC system performance is mandatory. It is not optional. Auditors do not accept “it looks fine.” They want data.
And data only comes from structured testing.
The Real Importance of AHU VALIDATION / HVAC
Let us be blunt. Most companies do not think about validation until there is an inspection.
That is backward.
AHU VALIDATION / HVAC ensures:
- GMP compliance
- ISO cleanroom standards adherence
- Controlled contamination levels
- Consistent environmental conditions
- Reduced product rejection rates
I once worked with a facility that ignored pressure differential testing. One failed audit later, production stopped for two weeks. The issue? A minor imbalance that would have taken two hours to fix if caught during routine validation.
Air problems rarely shout. They whisper — until they become expensive.

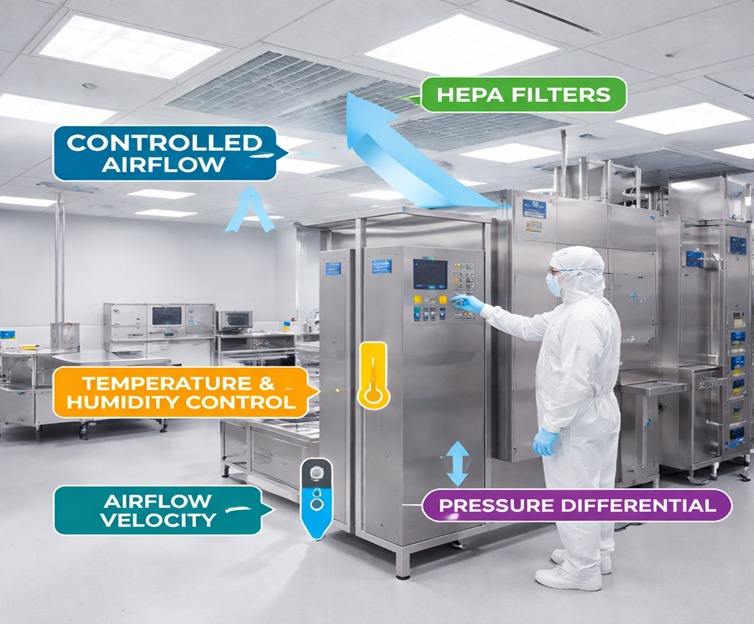

Key AHU Validation Parameters (Testing)
When conducting AHU validation, specific measurable parameters must be documented. These form the backbone of any HVAC system validation report.
Airflow Velocity and Volume
Airflow must match the design specification. Technicians measure:
- Supply air volume
- Return air volume
- Air changes per hour
- Laminar airflow velocity
Any deviation impacts cleanroom classification.
HEPA Filter Integrity Testing
Using DOP or PAO aerosol testing, filters are checked for leakage. If a filter fails? It gets replaced. No negotiation. This step is essential in AHU in HVAC system environments dealing with sterile production.
Temperature and Humidity Control
Environmental stability matters. Sudden humidity spikes can ruin pharmaceutical batches.
Validation confirms:
- Setpoint accuracy
- Sensor calibration
- System response time
Pressure Differential Testing
This prevents cross-contamination between zones.
For example:
- Positive pressure keeps contaminants out.
- Negative pressure isolates hazardous areas.
Pressure imbalance is one of the most common HVAC system validation failures.

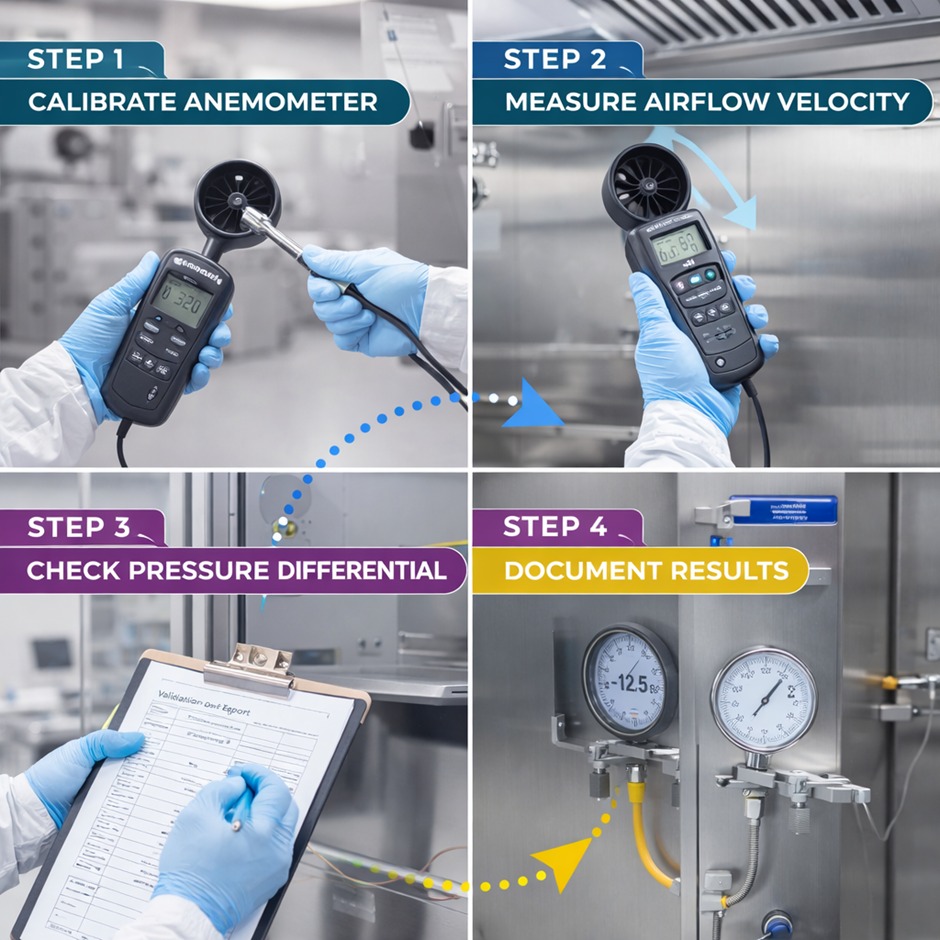

AHU VALIDATION / HVAC System Qualification Process
Validation does not stop at testing. It follows a structured qualification lifecycle.
Installation Qualification (IQ)
Confirms the AHU is installed as per approved design drawings.
Operational Qualification (OQ)
Tests the system under operational conditions.
Performance Qualification (PQ)
Verifies long-term performance under real production loads.
This complete HVAC system qualification ensures repeatable performance — not just one-time success.
Many companies maintain an HVAC validation protocol PDF documenting all results. Without documentation, validation does not legally exist.
AHU Validation Certification and Training
If you are serious about quality, invest in training.
AHU validation HVAC certification programs teach:
- HVAC SYSTEM VALIDATION TESTS
- Calibration standards
- Documentation practices
- Deviation handling
There are also AHU validation HVAC certification test modules and practical assessments. These certifications increase technician competence significantly. Poor validation usually comes from poor training. Not bad equipment.
Common Challenges in AHU VALIDATION / HVAC
Let us talk real-world problems.
- Improper instrument calibration
- Aging AHU components
- Poor airflow balancing
- Incomplete documentation
- Skipping periodic revalidation
Here is the uncomfortable truth: most HVAC failures are not technical. They are procedural.
Validation of HVAC system performance must be periodic, not reactive.
HVAC System Validation in Different Industries
Different industries require different validation intensities.
- Pharmaceuticals demand strict HVAC system qualification.
- Hospitals require infection control compliance.
- Food manufacturing focuses on humidity and contamination control.
- Electronics manufacturing requires particulate control.
The framework remains the same. The tolerance levels change.
Frequently Asked Questions
1. What is AHU validation full form?
AHU stands for Air Handling Unit. AHU validation confirms its performance meets regulatory standards.
2. How often should AHU validation be conducted?
Typically, annually, or after major maintenance, upgrades, or filter replacement.
3. What are HVAC SYSTEM VALIDATION TESTS?
They include airflow testing, filter integrity testing, pressure differential checks, temperature mapping, and recovery testing.
4. Is AHU validation mandatory?
In GMP, pharmaceutical, and healthcare facilities — yes.
5. How to Access AHU Validation PDFs and Templates?
Professional HVAC validation providers supply customized HVAC validation protocol PDFs tailored to facility requirements.
Conclusion
Air is invisible. But its impact is not.
Ignoring AHU VALIDATION / HVAC is like driving without brakes and hoping nothing goes wrong. It may work for a while — until it does not.
Proper HVAC system validation protects your facility, your product, and your reputation. From airflow testing to HVAC system qualification documentation, every step matters.
If your system has not been validated recently, do not wait for an audit notice.
